Reference Manual

This is a quick cheat sheet on all the public tools cinput gives you to build the coolest UIs on the ClassPad.

---

cinput.input

cinput.input(
  prompt,
  type="alpha_numeric",
  theme="light",
  layout="qwerty",
  touch_mode=gint.KEYEV_TOUCH_DOWN
)

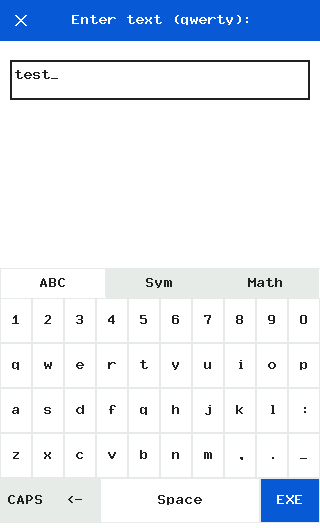

The single most helpful function. Pauses everything, throws up a full screen modal with a modern-looking on-screen keyboard, and returns the result (or None if the user cancel).

• prompt (str): The title of the window.
• type (str): What kind of keyboard you want:
  • "alpha_numeric": The full QWERTY/AZERTY keyboard with symbols.
  • "text": Same as above.
  • "numeric_int": Only a numpad. No decimal point.
  • "numeric_int negative": A numpad + negative sign.
  • "numeric_float": A numpad + decimal point.
  • "math": A special math layout for +, -, *, /.
• theme (str): "light", "dark", or your own custom theme name.
• layout (str): Custom keyboard map limit. Use "qwerty", "azerty", "qwertz", or "abc".
• touch_mode: Customize when the touch is triggered. Default is when you tap KEYEV_TOUCH_DOWN.

type

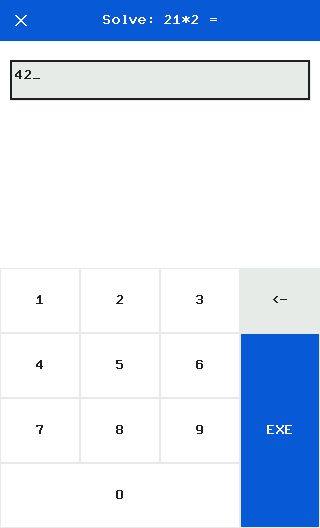

numeric_int :

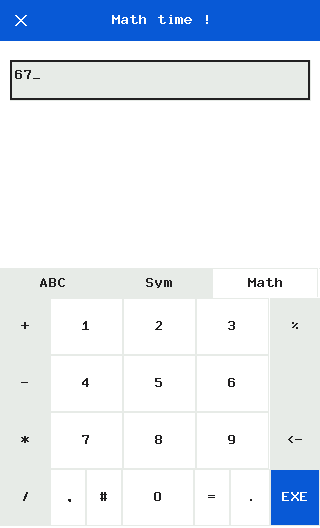

math :

cinput.pick

cinput.pick(
  options,
  prompt="Select:",
  theme="light",
  multi=False,
  touch_mode=gint.KEYEV_TOUCH_DOWN
)

When dealing with a finite number of choices to pick, give the users a list. It pops up a fast, inertial-scrolling list taking over the screen.

• options (List[str]): An array of choices, strings, that would get displayed.
• prompt (str): Title bar string.

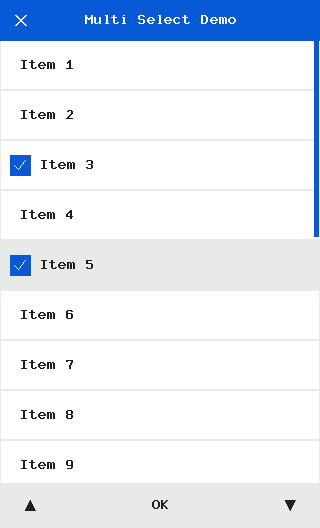

• multi (bool): Set this to True to allow multiple items with checkboxes.
• Returns: A string if multi=False, or a List of Strings if multi=True, or None.

---

cinput.ask

cinput.ask(
  title,
  body,
  ok_text="OK",
  cancel_text="Cancel",
  theme="light",
  touch_mode=gint.KEYEV_TOUCH_DOWN
)

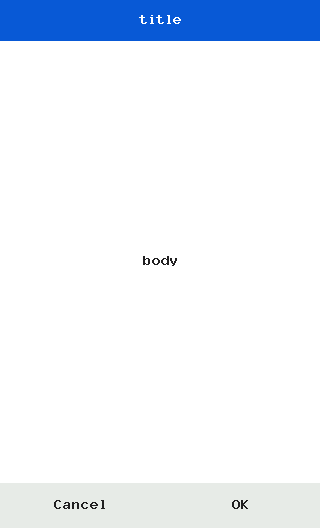

The standard modal alert screen with two huge buttons at the bottom.

• title (str): Large bold title.
• body (str): Warning phrase.
• ok_text / cancel_text (str): Define custom labels, like "Validate" instead of "OK".
• Returns: True if user hit OK, False if user canceled.

---

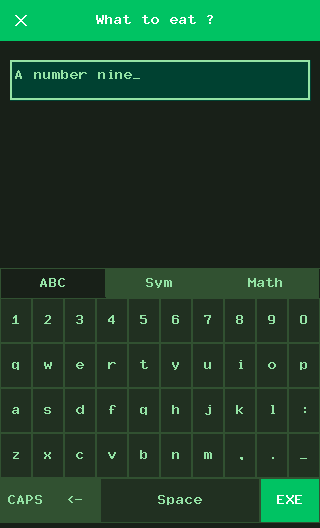

Customize Themes

CInput themes are Python dictionaries that allows you to match your app’s aesthetic. Colors are coherent between dialogs and CInput elements.

import cinput

# 1. Define your own hex-codes (R, G, B)
MY_SICK_THEME = {
    'modal_bg': C_RGB(3, 4, 3),
    'kbd_bg':   C_RGB(3, 4, 3),
    'key_bg':   C_RGB(4, 6, 4),
    'key_spec': C_RGB(6, 10, 6),
    'key_out':  C_BLACK,
    'txt':      C_RGB(18, 28, 20),
    'txt_dim':  C_RGB(8, 12, 8),
    'accent':   C_RGB(0, 24, 12),
    'txt_acc':  C_WHITE,
    'hl':       C_RGB(0, 8, 6), # selected list item background
    'check':    C_WHITE
}


# 2. Register it with the library!
cinput.THEMES['toxic'] = MY_SICK_THEME

# 3. Pull it out anywhere!

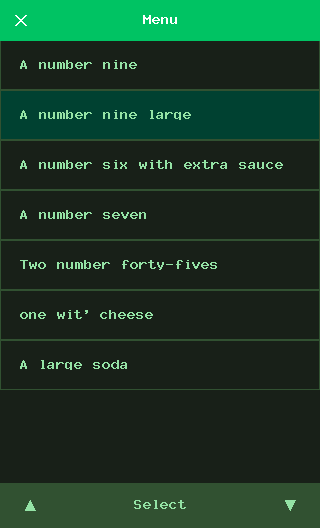

cinput.pick(["A number nine", "A number nine large", ...], "Menu", theme="toxic")

---

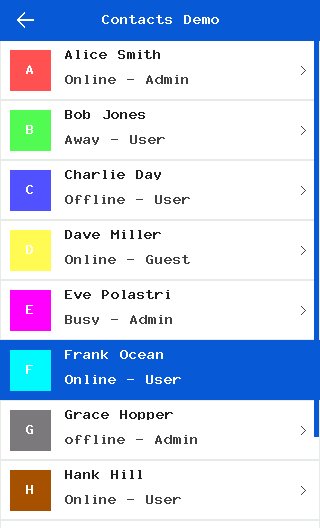

cinput.ListView

Use this class to embed a scrollable list inside your own custom loop

Initialization: ListView(rect, items, row_h=40, theme='light', headers_h=None)

• rect: Tuple (X, Y, W, H) of the screen bounds.
• items: A list of dictionaries {'text': 'Item', 'type': 'item', 'arrow': True} or section headers {'text': 'Settings', 'type': 'section', 'height': 30}
• update(events): Pass the result of pollevent() here. It handles dragging and clicks. It returns ('click', index, item) if pressed!
• draw(): Renders all visible sections instantly.

Note: You can extend this class to create your own list element

---

cinput.Keyboard

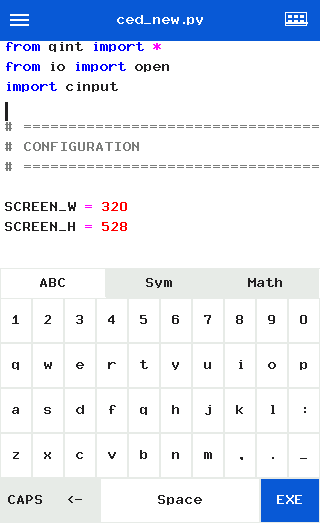

If you don’t want cinput.input() taking over the whole screen but still want its features. You can draw the keyboard directly inside your own loops (like what ced.py does for the text editor).

• Keyboard(default_tab=0, enable_tabs=True, numpad_opts=None, theme='light', layout='qwerty')
• draw(): Draws the grid.
• update(event): Returns the character if a key was pressed, or special flags like "ENTER" or "BACKSPACE".

---

Now, it’s your turn ! Go drop some code!
