Repair Guide
Damaged PCB

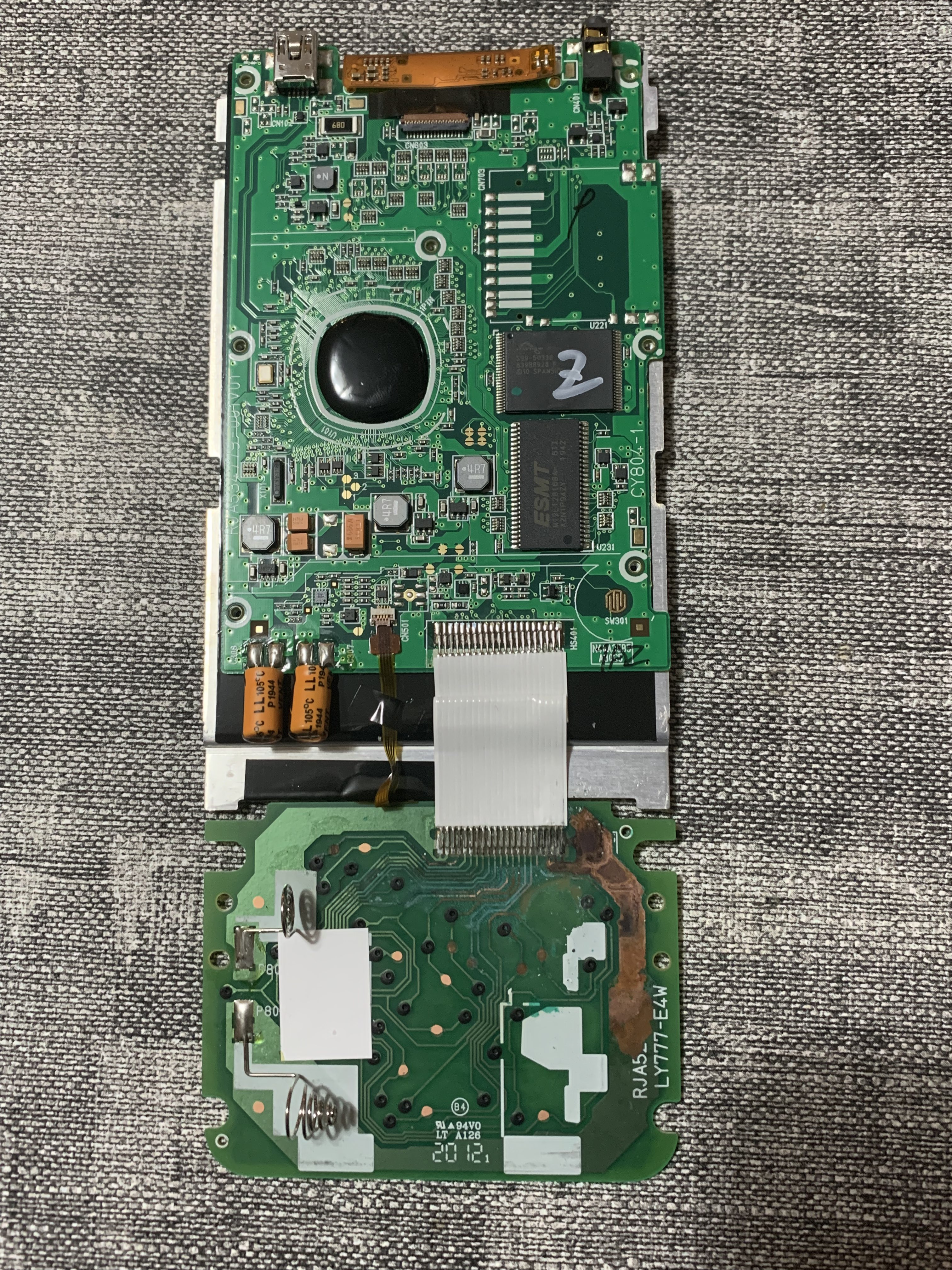

Section titled “Damaged PCB”Here’s an example of water-damaged keyboard PCB

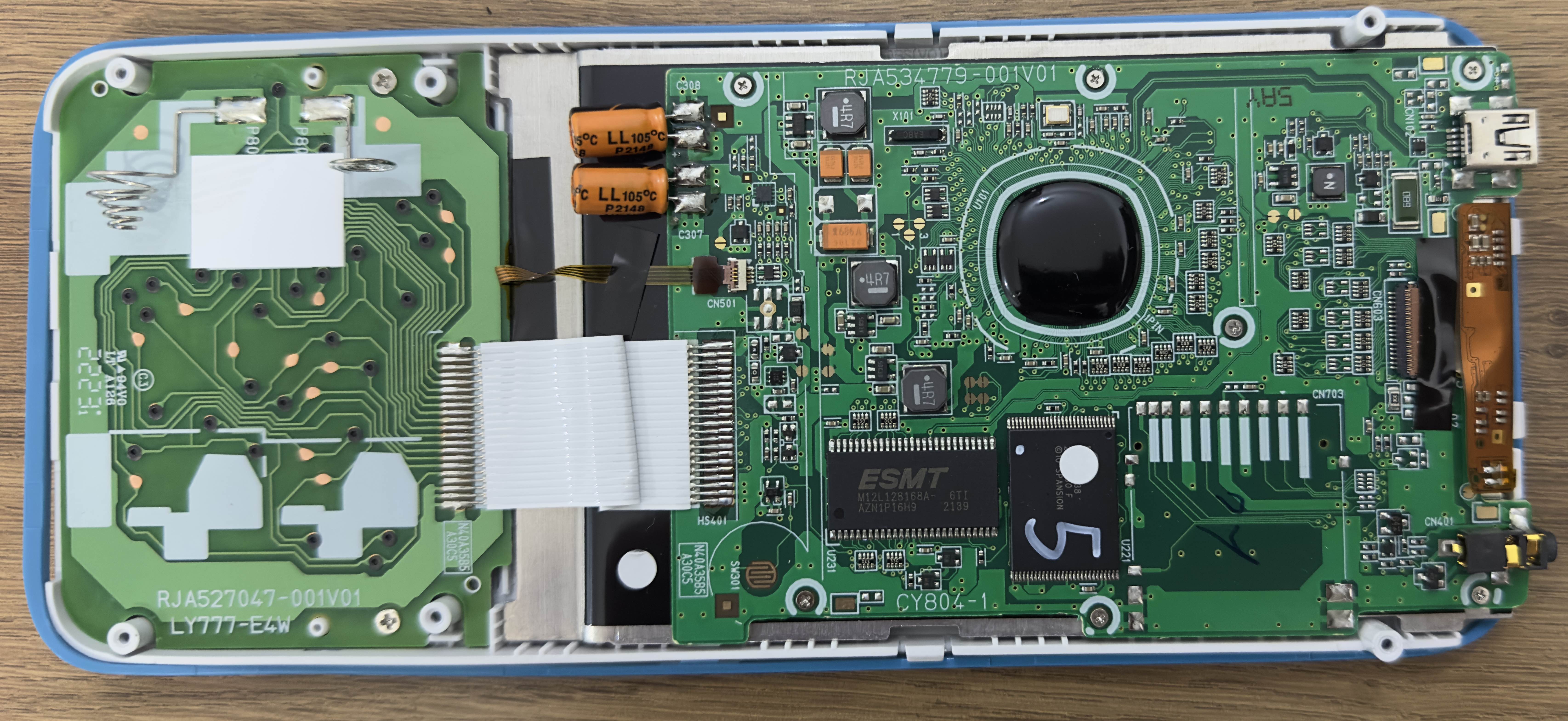

RJA534779-001V01
Section titled “RJA534779-001V01”CY804-1 (fx-CG500)

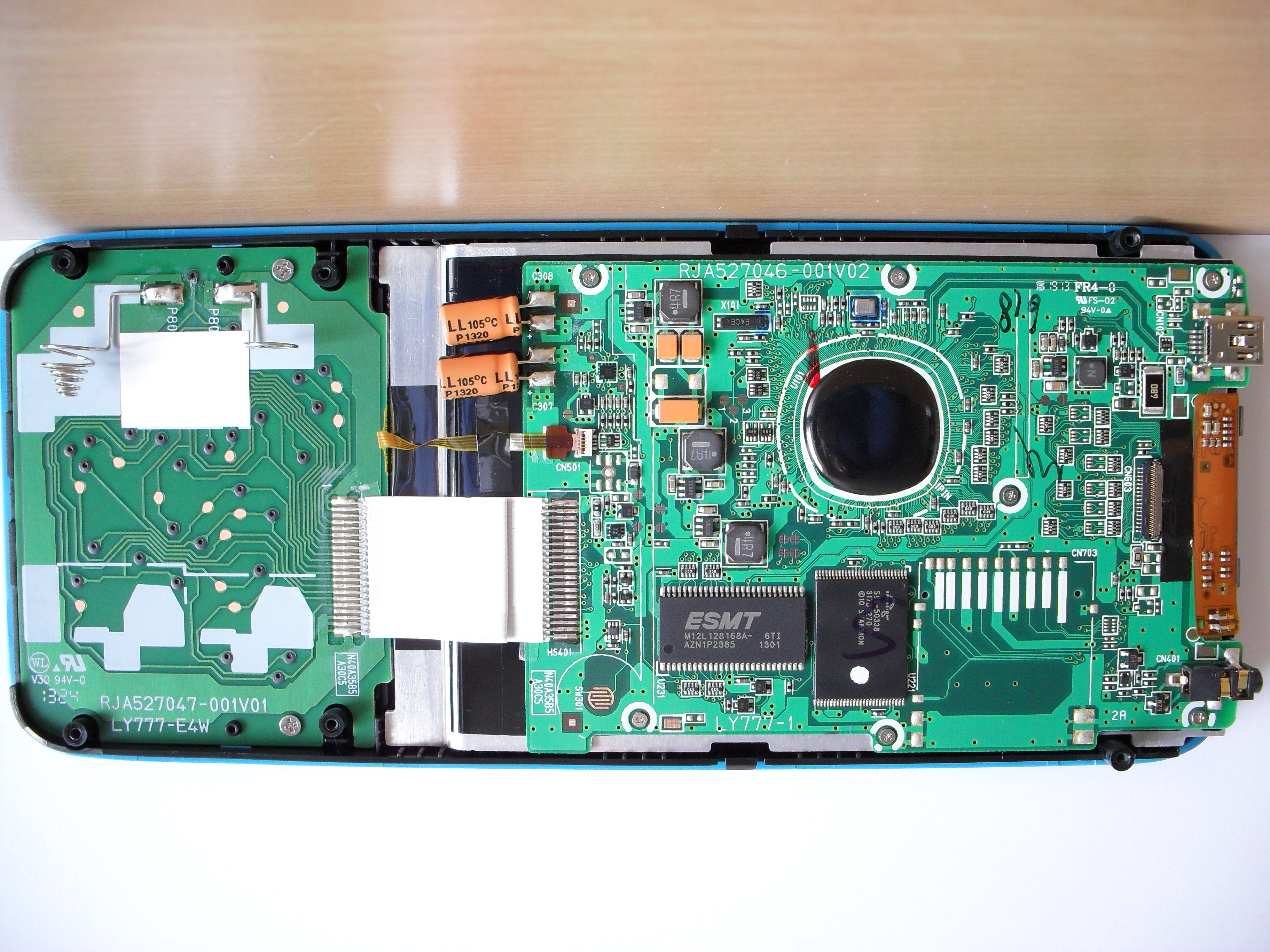

RJA527046-001V02
Section titled “RJA527046-001V02”LY777-1 (fx-CP400)
Here’s an example of water-damaged keyboard PCB
CY804-1 (fx-CG500)
LY777-1 (fx-CP400)
